Modular platform 100x100 cm

SKU: ST.130+P40.100.100

€248,88
Sold Out

  • Bearing tube diameter:14 mm
  • X-bolt diameter:12mm
  • Support points:9 points
  • Open dimensions:100 x 100 cm
  • Tested flow rate: 400 daN/m^2

Modular platform made up of a 91x91 cm extendable structure and a 100x100 cm walkable shelf in resin-coated birch plywood.

Modularity

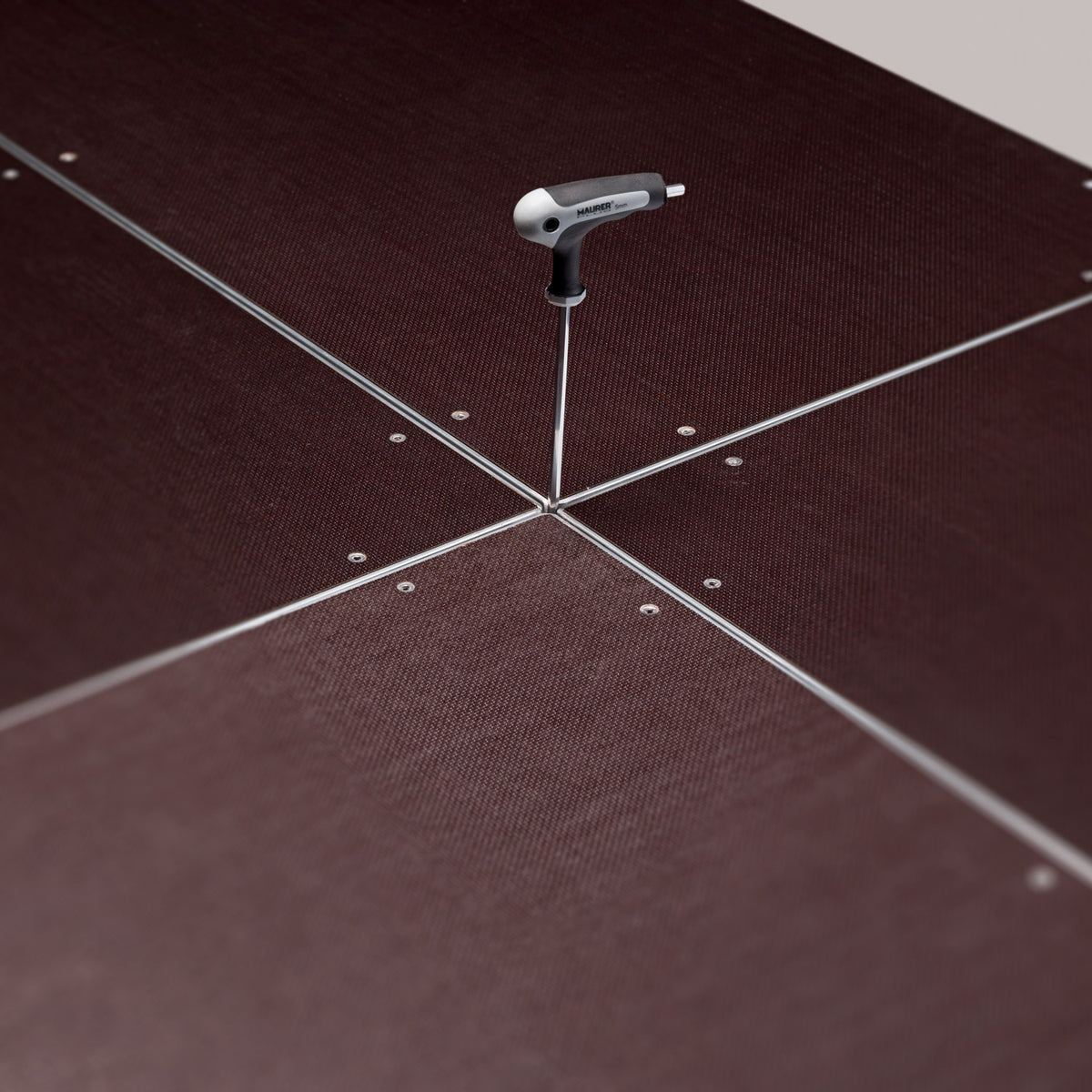

This line of products is very practical because it can be assembled and integrated as desired. The platforms can be attached with special attachment systems through the profile of the shelf to create walkways, platforms for batteries, etc.

Structure composed of

  • nylon support heads;
  • 14 mm anodized aluminum supporting tubes;
  • X-shaped tie rods diameter 12 mm;
  • internal metal sliding rod (not nylon)

Support points The platform structure is equipped with 9 support points

Shelves : a resined birch plywood shelf measuring 100x100 cm, thickness 15mm is included. The shelf is profiled in 40x25mm aluminum.

Tested capacity 400 daN/m^2

Available heights 30 cm, 40 cm, 60 cm.

>
